Guy Amar

CSV order upload for beverage wholesale buyers

Upload a spreadsheet, create an order. The design problem was everything that goes wrong in between.

Company City Hive, beverage e-commerce
Role Product designer: reframe, UX, UI, spec, handoff
Surfaces Merchant dashboard + storefront
Timeline 2025 · 1 week, primary sprint task
Team Me, a dev team, 1 CS rep
The CSV upload review step: every problem row is resolved before the cart fills
At a glance
The ask

“There should be an API end point that allows authenticated users to send an excel listing of products and to have cart created and ready for them. Apparently a common use case for bars and restaurants.”

— The original request
Time to build a 100-item order
Before: one product at a time
58 min
After: upload, map, confirm
2–10 min
How I measured it: timed a 100-item order built by hand on the dashboard, then timed real files through the upload flow, from the cleanest (2 min) to the messiest (10 min).
Outcome 220 orders placed through the upload flow in its first month on the merchant dashboard. Storefront designed and specced, not yet released.

The order already exists, in a spreadsheet

Exported files are messy. An endpoint answers a messy file with an error array, which leaves someone holding a 167-line order and no idea which lines failed or what to do about them.

Key insight

I treated the upload as the easy half. The design problem was what happens to the rows that don't match, and whether someone can finish their order anyway.

Four steps, on purpose

The established pattern: file, map, validate, submit. Reusing it was deliberate. An import flow is the wrong place to be original.

Two entry points, one resolution path

Everything after the file is parsed is shared.

From inside an order Merchant
Upload cart page Customer
Cart has items? Keep or remove
Map columns Barcode, quantity, unit
Match catalog By barcode
All matched Nothing to resolve
Cart Ready to check out
1
Some issues Missing, multiple, OOS
Review and fix Choose or drop items, then the cart
2
None matched Dead end
Fix and retry Export failed barcodes, back to upload
Entry
Recovery
Result
1
Valid isn’t resolved A barcode can match and still be ambiguous (Tito’s comes in seven sizes) or out of stock today. Neither is a data error, so a format check can’t catch it.
2
Recovery is a loop, not a repair You can’t edit a spreadsheet into stock. Export the failed rows, fix them, upload again and choose Keep, so the rows already in the cart stay.

The same flow, twice

City Hive runs a strict design system that differs between buyers (Storefront) and merchants (Universal Dashboard). This design needed the same UX implemented on both platforms.

1

File: upload cart

Cart conflict is resolved before parsing. A merge you can't see is worse than a question you have to answer.

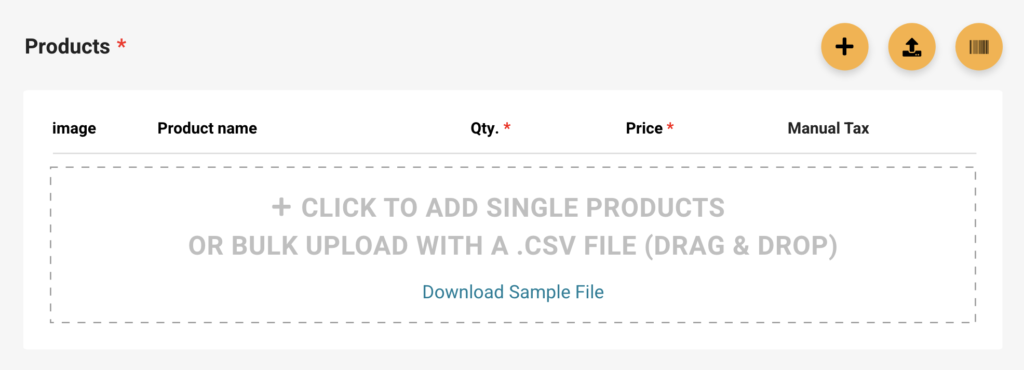

Merchant dashboard: the products table inside an order, where the upload starts
Dashboard

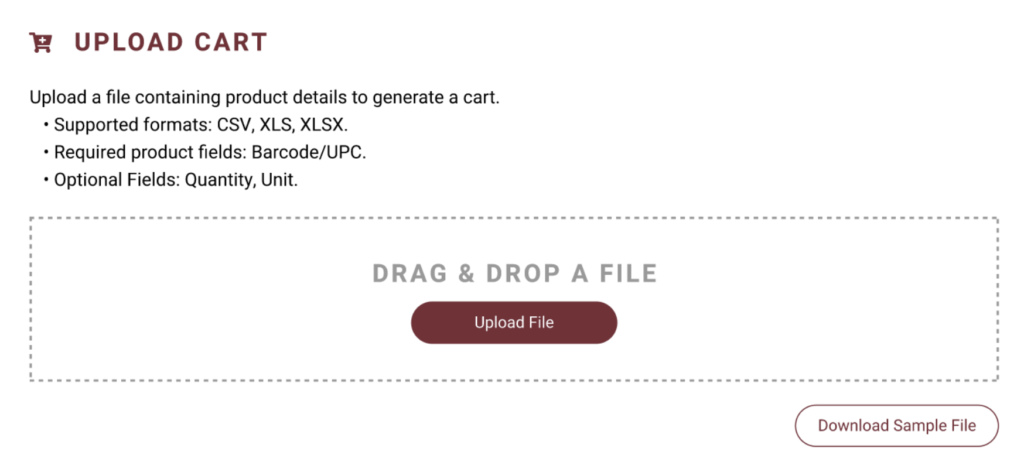

Storefront: the cart page with the Upload cart option
Storefront
2

Map: sort the file

Export headers are arbitrary (Item UPC, Order Qty, Pack), so mapping has to be manual. Knowing when you're finished doesn't. Submit stays disabled until the required Barcode field has a home.

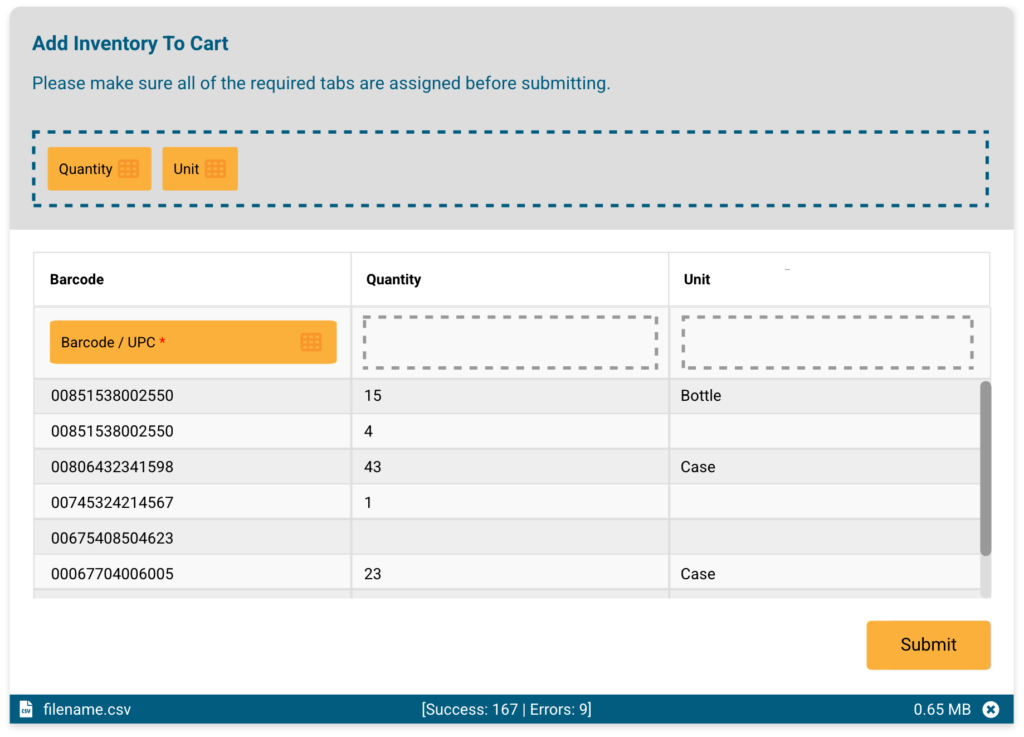

Merchant dashboard: mapping file columns to barcode, quantity and unit
Dashboard

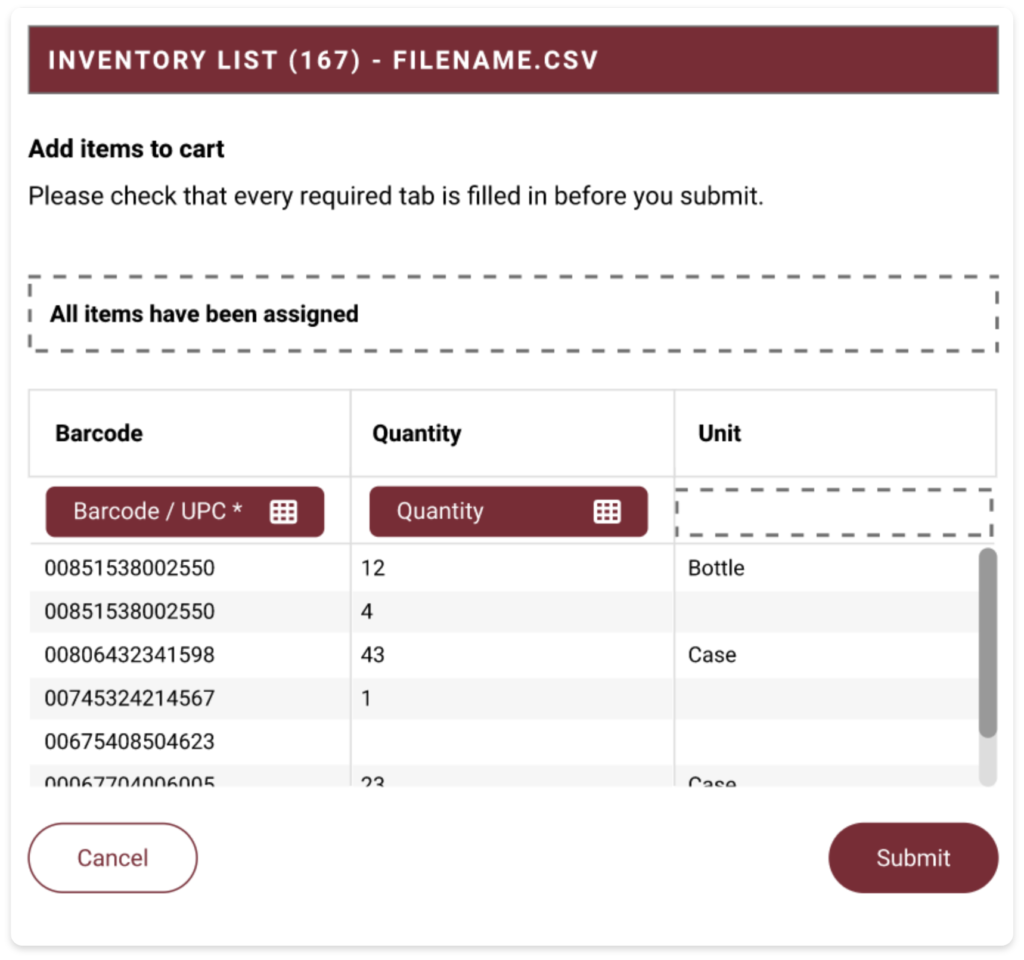

Storefront: mapping file columns to barcode, quantity and unit
Storefront
3

Validate: solve issues and approve

Three things can go wrong, and they're not the same thing.

Matches nothing A file problem. Export those rows and fix them.
Matches several sizes A choice. The buyer picks the right product.
Out of stock Not wrong at all. It's just unavailable today.

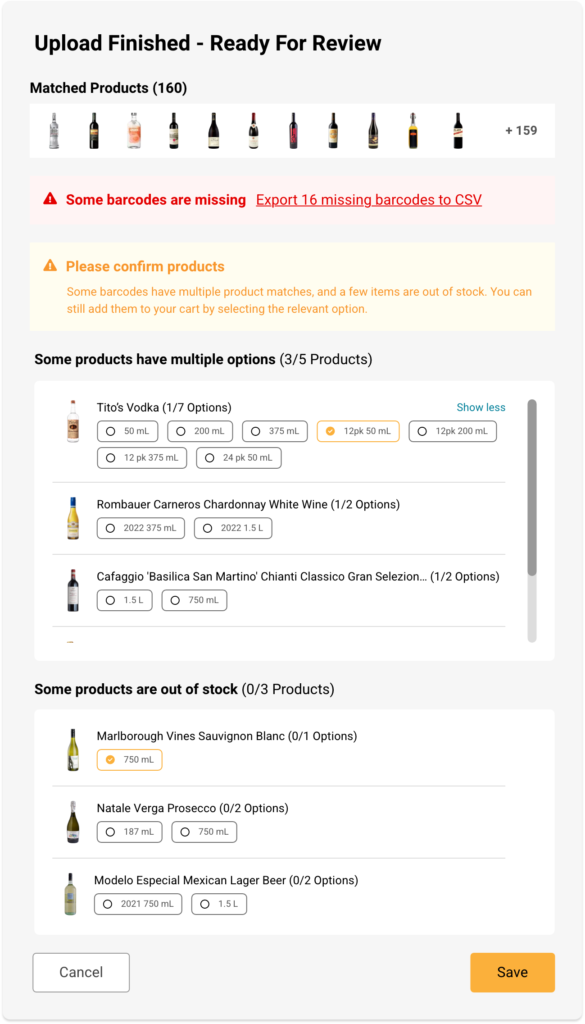

Merchant dashboard: validation lists the rows to resolve before submitting
Dashboard

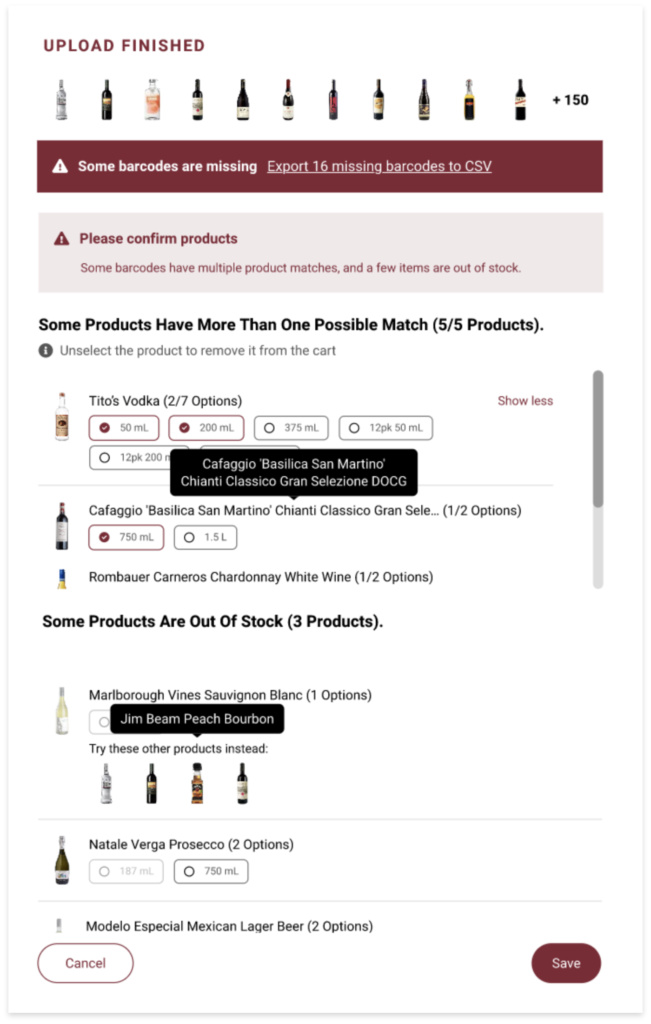

Storefront: validation lists the rows to resolve before adding to the cart
Storefront

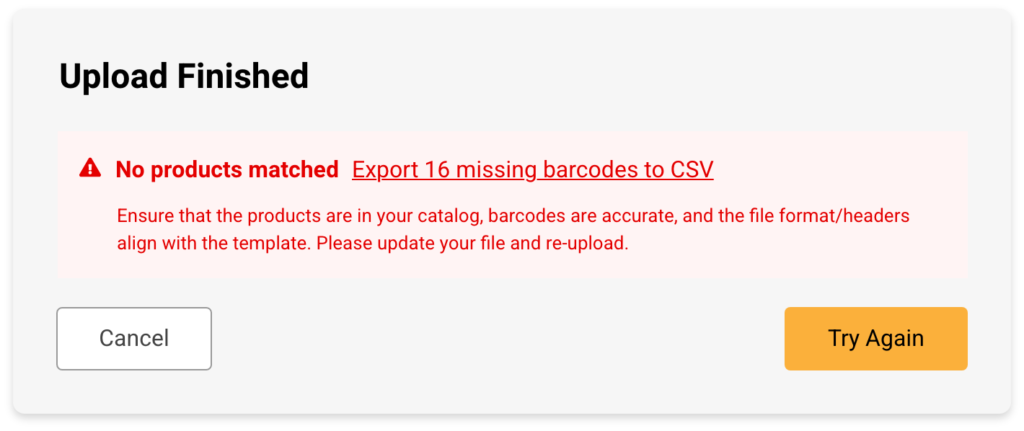

Merchant dashboard: no barcodes matched, with an option to export the failed rows
Dashboard · nothing matched

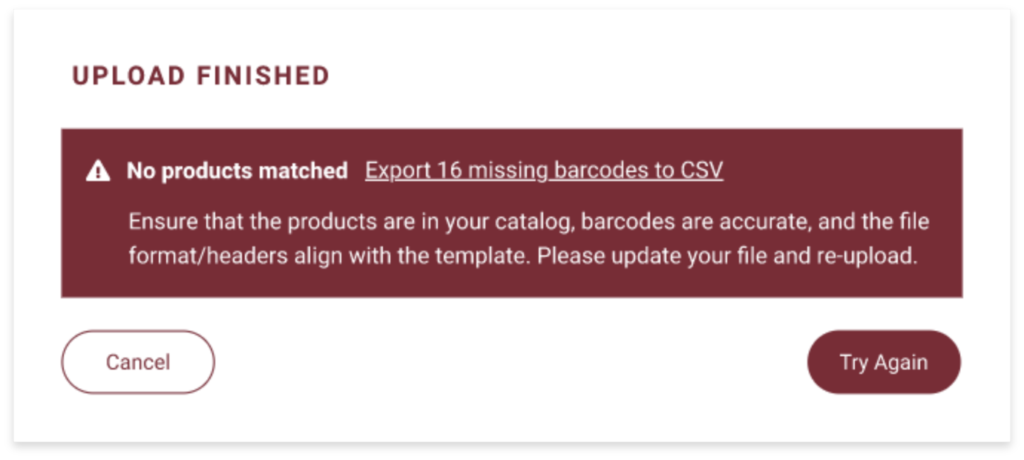

Storefront: no barcodes matched, with an option to export the failed rows
Storefront · nothing matched
4

Submit: view updated cart

Back to where you started, with the cart filled. The merchant lands in the order they were already building; the customer lands in a cart ready to check out.

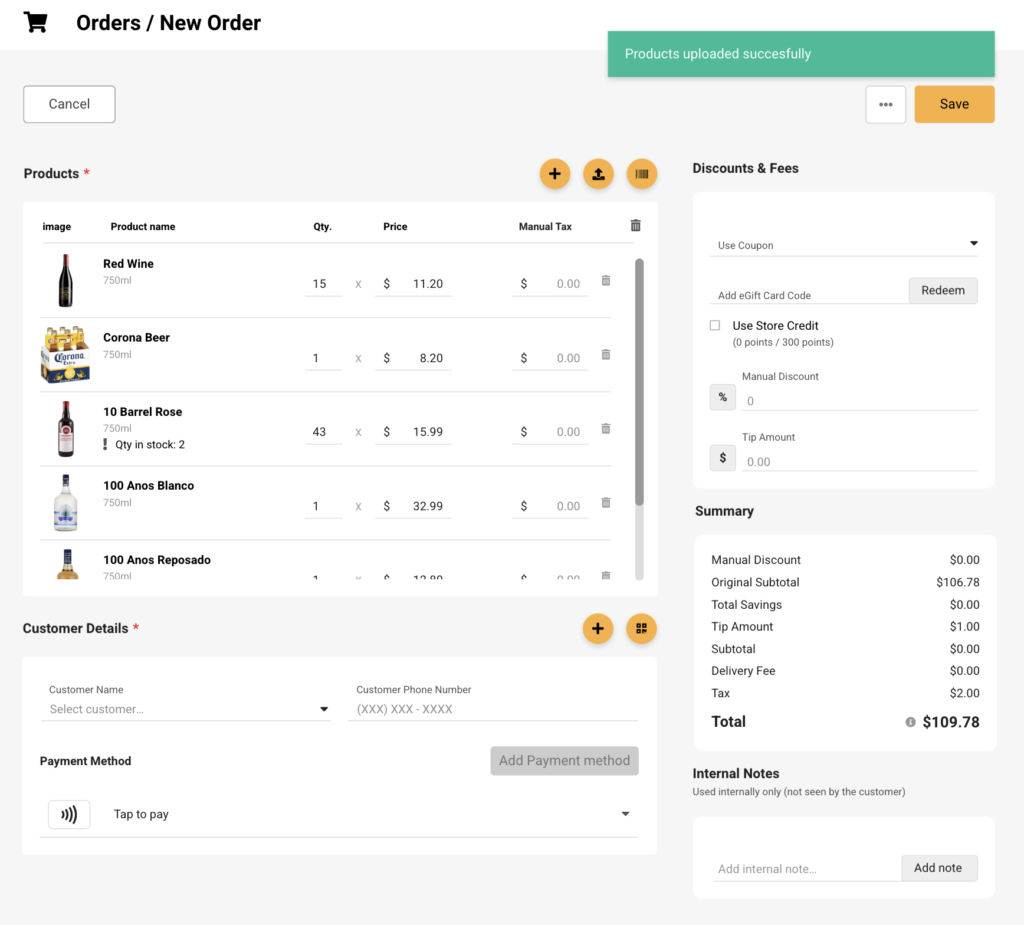

Merchant dashboard: the order updated with the uploaded items
Dashboard

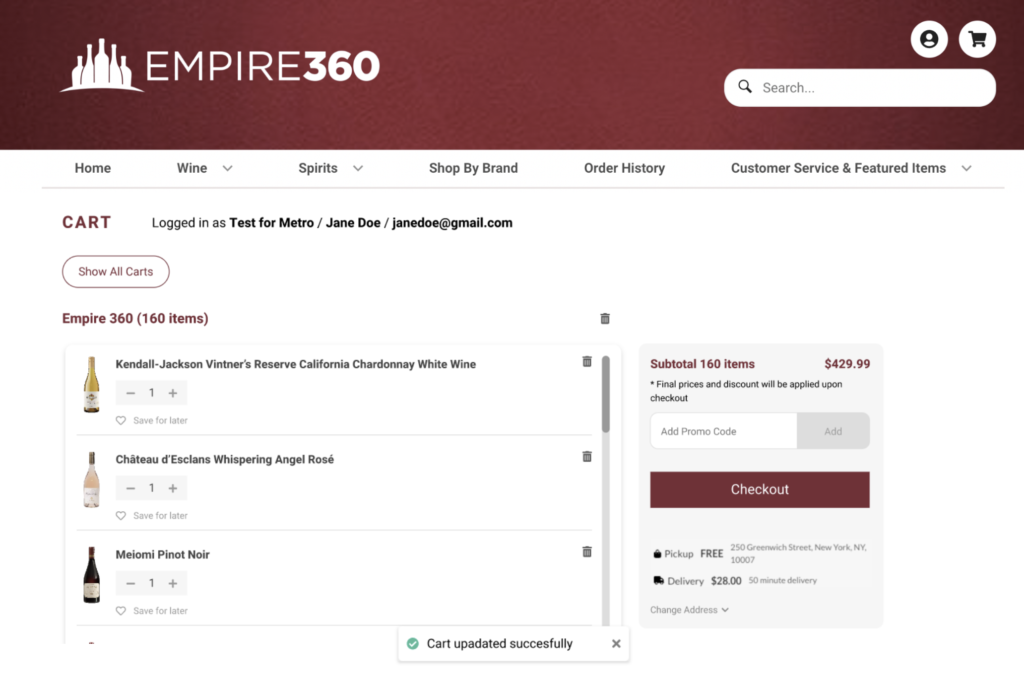

Storefront: the cart filled with the uploaded items
Storefront

Watch it run

Screen recordings of both flows, end to end: file, map, validate, submit.

Merchant dashboard Shipped
Storefront Designed, not yet released

When the file doesn’t match

The two recovery paths: nothing in the file matched, and clearing an order to start again.

Nothing matched · dashboard
Nothing matched · storefront
Clearing the order

Merchant dashboard first

Storefront was specced and designed, not yet released. On the merchant dashboard, usage shows buyers adopted it, and two numbers show whether the recovery design held up.

First-try match rate 41%
of uploads matched every row on the first try. The other 59% hit at least one problem row, so the review step carries most uploads.
Recovery loop 74%
of rows that failed on an earlier upload now go through successfully. Failed rows aren't a dead end; recovery works.
Monthly usage 220 orders placed through the CSV flow in the first month measured, counted with a production database query.

What I'd take from this

Do differently Time the typical file, not just the extremes I timed the best and worst files, 2 and 10 minutes against a 58-minute manual baseline, but never a typical one. A median across real uploads would have turned the saving into one number instead of a range.
Learned Design the failure path first Only 41% of uploads matched on the first try. A flow built for the happy path would have failed most buyers. The review-and-retry loop is what made the feature work, and 74% of failed rows now go through.
